Exchange Server

The Exchange Server is a high-performance backend system optimized for cryptocurrency trading. It supports up to 10,000 trades per second and provides real-time data notifications through WebSocket.

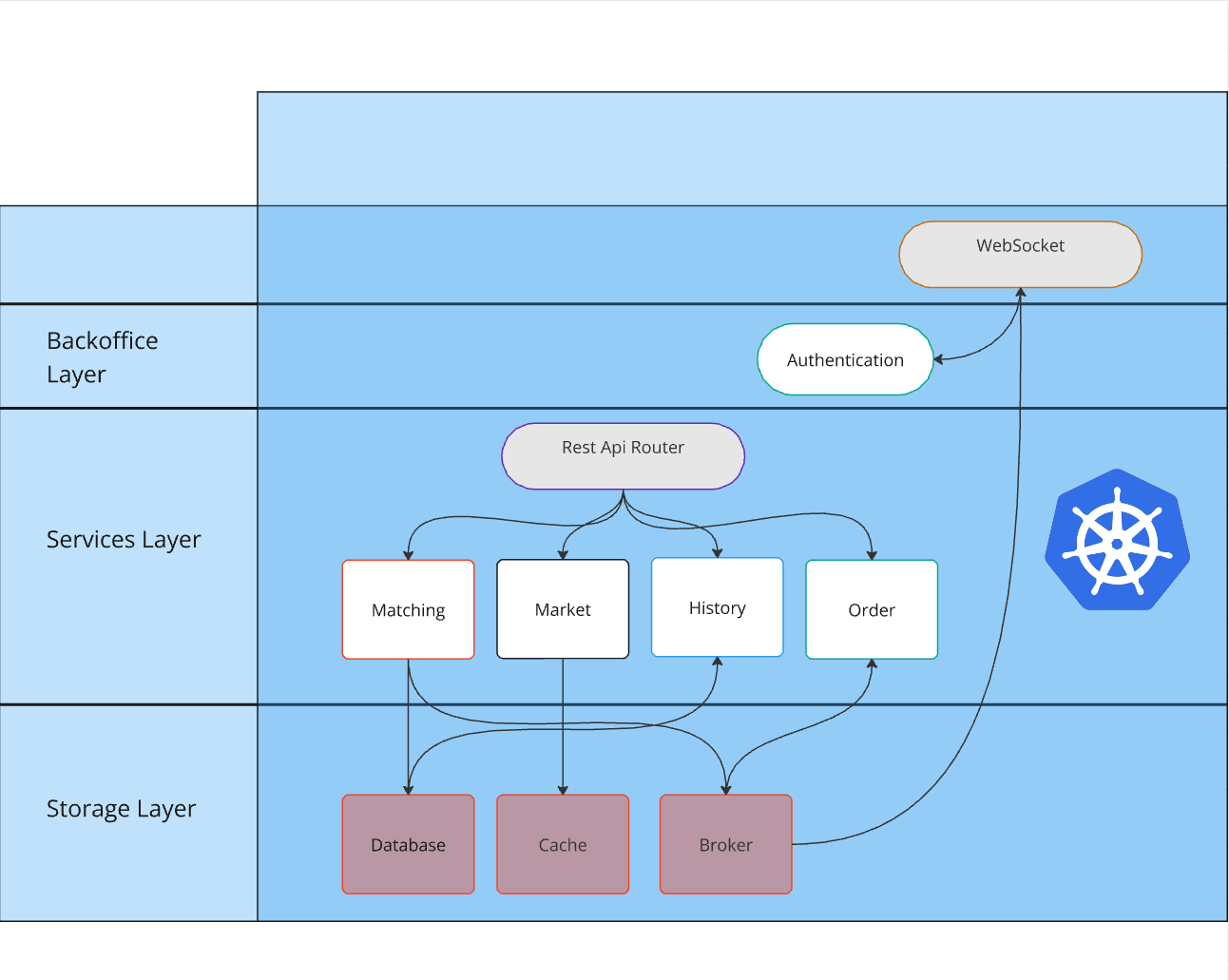

Architecture

The Matching Services is identified as “Service layer” in the diagram above.

Architecture

Code Structure

Required Components

Database Service: Stores operational logs, user balance history, order history, and trade history.
Cache Service: Stores market data and supports high-performance access to frequently requested information.
Messaging Queue: Acts as the messaging queue for asynchronous communication.

Core Libraries

Network Library: A high-efficiency networking library capable of handling 1M TCP connections. It includes TCP/UDP/UNIX SOCKET server and client implementations, along with support utilities such as timers, state machines, and thread pools.
Utility Library: Provides basic utilities including logging, configuration parsing, data structures, and implementations for HTTP, WebSocket, and RPC servers.

Modules

Execution Engine: The core system responsible for recording user balances and executing orders in-memory. It logs all operations in the database, replays them on startup, stores user history, and streams balance, order, and trade data to the messaging queue.
Order Processing Service: TBD.
Market Data Aggregator: Processes messages from the messaging queue to generate market data.
Historical Data Reader: Reads historical data from the database for analytical purposes.
API Gateway: Offers a simplified HTTP interface for higher-level system interactions.
Real-Time Notification Service: Manages user and market data queries and real-time push notifications. Requires Nginx for WSS handling.
Critical Logging Service: Logs critical errors to the cache service for alert notifications.

Deployment and Installation

TBD

Compilation

TBD

Exchange Server API

Request Format

Request

method: Method name, String
params: Parameters, Array
id: Request ID, Integer

Response

result: JSON object, null if failed
error: JSON object, null if successful
- code: Error code
- message: Error message
id: Request ID, Integer

General Error Codes

Code	Description
1	Invalid argument
2	Internal error
3	Service unavailable
4	Method not found
5	Service timeout

Market API

Add New Market

Method: `market.add`

URL:

http://example.com/

Parameters

The market.add method requires the following parameters:

Parameter	Type	Description
`name`	String	The name of the market (e.g., “BTC_USDT”).
`stock`	String	The name of the stock asset to be traded (e.g., “BTC”).
`money`	String	The name of the money asset used for trading (e.g., “USDT”).
`is_listed`	Integer	Indicates if the market is listed (0 = not listed, 1 = listed).
`min_amount`	String	The minimum amount for trading in this market (e.g., “0.01”).

Example Request with Python:

import requests

url = "http://example.com/"
payload = {
    "method": "market.add",
    "params": {
        "name": "BTC_USDT",        # Market name
        "stock": "BTC",            # Stock asset name
        "money": "USDT",           # Money asset name
        "is_listed": 1,            # Listed flag
        "min_amount": "0.01"       # Minimum amount for trading
    },
    "id": 3
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

Example Request with `curl`:

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.add","params": {"name": "BTC_USDT", "stock": "BTC", "money": "USDT", "is_listed": 1,"min_amount": "0.01"},"id": 3}'

Response Type:

json

Example Response:

{
    "error": null,
    "result": [
        {
            "id": 1,
            "name": "BTC_USDT",
            "stock": "BTC",
            "money": "USDT",
            "stock_prec": 8,
            "money_prec": 8,
            "min_amount": "0.01",
            "is_listed": 1,
            "hide_percent": 1
        }
    ],
    "id": 3
}

Response Fields:

Field	Type	Description
`id`	Integer	The unique ID of the market.
`name`	String	The name of the market.
`stock`	String	The stock asset in the market.
`money`	String	The money asset in the market.
`stock_prec`	Integer	The precision of the stock asset (e.g., 8 decimals).
`money_prec`	Integer	The precision of the money asset (e.g., 8 decimals).
`min_amount`	String	The minimum amount for trading in this market.
`is_listed`	Integer	Indicates if the market is listed (0 = not listed, 1 = listed).
`hide_percent`	Integer	Percentage visibility control (e.g., 1).

Update Market

Method: `market.update`

URL:

http://example.com/

Parameters

The market.update method requires the following parameters:

Parameter	Type	Description
`name`	String	The name of the market to be updated (e.g., “BTC_USDT”).
`is_listed`	Integer	Indicates if the market is listed (0 = not listed, 1 = listed) (optional).
`stock_prec`	Integer	The precision of the stock asset (optional, e.g., 8 decimals for BTC).
`money_prec`	Integer	The precision of the money asset (optional, e.g., 8 decimals for USDT).
`min_amount`	String	The minimum amount for trading in this market (optional, e.g., “0.01”).
`type`	Integer	The type of the market (optional).
`mp_type`	Integer	The type of price multiplier (optional).
`hide_percent`	Integer	The percentage of visibility (optional, e.g., 1).

Example Request with Python:

import requests

url = "http://example.com/"
payload = {
    "method": "market.update",
    "params": {
        "name": "BTC_USDT",        # Market name
        "is_listed": 1,            # Listed flag (optional)
        "stock_prec": 8,           # Stock precision (optional)
        "money_prec": 8,           # Money precision (optional)
        "min_amount": "0.01",      # Minimum amount (optional)
        "type": 1,                 # Market type (optional)
        "mp_type": 2,              # Price multiplier type (optional)
        "hide_percent": 1          # Visibility percentage (optional)
    },
    "id": 4
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

Example Request with `curl`:

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.update","params": {"name": "BTC_USDT", "is_listed": 1, "stock_prec": 8, "money_prec": 8, "min_amount": "0.01", "type": 1, "mp_type": 2, "hide_percent": 1},"id": 4}'

Response Type:

json

Example Response:

{
    "error": null,
    "result": [
        {
            "id": 1,
            "name": "BTC_USDT",
            "stock": "BTC",
            "money": "USDT",
            "stock_prec": 8,
            "money_prec": 8,
            "min_amount": "0.01",
            "is_listed": 1,
            "hide_percent": 1
        }
    ],
    "id": 4
}

Response Fields:

Field	Type	Description
`id`	Integer	The unique ID of the market.
`name`	String	The name of the market.
`stock`	String	The stock asset in the market.
`money`	String	The money asset in the market.
`stock_prec`	Integer	The precision of the stock asset (e.g., 8 decimals).
`money_prec`	Integer	The precision of the money asset (e.g., 8 decimals).
`min_amount`	String	The minimum amount for trading in this market.
`is_listed`	Integer	Indicates if the market is listed (0 = not listed, 1 = listed).
`hide_percent`	Integer	Percentage visibility control (e.g., 1).

Market Data

import requests

url = "http://example.com/"
payload = {
    "method": "market.last",
    "params": ["BTC_USDT"],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.last", "params": ["BTC_USDT"], "id": 1}'

{
    "error": null,
    "result": "66858.22000000",
    "id": 1
}

Method: market.last

Parameters

market: Market name, String

Example Request with `curl` , `python`:

Response Type:

json

Executed History

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.deals", "params": ["BTC_USDT", 100, 0], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.deals",
    "params": ["BTC_USDT", 100, 0],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
    "error": null,
    "result": [
        {
            "id": 1156,
            "time": 1729176270.0424521,
            "price": "66896",
            "amount": "0.00517",
            "type": "sell"
        },
        {
            "id": 1155,
            "time": 1729176269.7379661,
            "price": "66896",
            "amount": "0.00149",
            "type": "sell"
        },
        ...
    ],
    "id": 1
}

Method: market.deals

Parameters

market: Market name, String
limit: Number of records to retrieve, Integer (up to 10,000)
last_id: ID of the last trade for pagination, Integer (optional)

Example Request with `curl` , `python`:

Response Type:

json

User Executed History

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.user_deals", "params": [1, "BTC_USDT", 0, 100], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.user_deals",
    "params": [1, "BTC_USDT", 0, 100],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
  "error": null,
  "result": {
    "offset": 0,
    "limit": 100,
    "records": [
      {
        "id": 5,
        "time": 1492697636.238869,
        "user": 1,
        "side": 1,
        "role": 2,
        "amount": "0.1000",
        "price": "7000.00",
        "deal": "0.1000",
        "fee": "0.0002"
      }
    ]
  },
  "id": 1
}

Method: market.user_deals

Parameters

user_id: User ID, Integer
market: Market name, String
offset: Offset position for pagination, Integer
limit: Number of records to retrieve, Integer

Example Request with `curl` , `python`:

Response Type:

json

KLine Data

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.kline", "params": ["BTC_USDT", 1492358400, 1492697636, 60], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.kline",
    "params": ["BTC_USDT", 1492358400, 1492697636, 60],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
  "error": null,
  "result": {
    "offset": 0,
    "limit": 100,
    "total": 0,
    "records": [[1492358400, "7000.00", "8000.00", "8100.00", "6800.00", "1000.00", "123456.78", "BTC_USDT"]]
  },
  "id": 1
}

Method: market.kline

Parameters

market: Market name, String
start: Start timestamp, Integer
end: End timestamp, Integer
interval: Time interval between candles, Integer

Example Request with `curl` , `python`:

Response Type:

json

Market Status

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.status", "params": ["BTC_USDT", 86400], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.status",
    "params": ["BTC_USDT", 86400],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
    "error": null,
    "result": {
        "period": 86400,
        "last": "67072.02",
        "open": "66840",
        "close": "67072.02",
        "high": "67093.99",
        "low": "66723.99",
        "volume": "44.25752",
        "deal": "2957454.346129"
    },
    "id": 1
}

Method: market.status

Parameters

market: Market name, String
period: Time period in seconds (e.g., 86400 for the last 24 hours), Integer

Example Request with `curl` , `python`:

Response Type:

json

Market Status Today

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.status_today", "params": ["BTC_USDT"], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.status_today",
    "params": ["BTC_USDT"],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
    "error": null,
    "result": {
        "open": "66840",
        "last": "67082.74",
        "high": "67093.99",
        "low": "66723.99",
        "volume": "45.01224",
        "deal": "3008080.3095034"
    },
    "id": 1
}

Method: market.status_today

Parameters

market: Market name, String

Example Request with `curl` , `python`:

Response Type:

json

Market List

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.list", "params": [], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.list",
    "params": [],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
    "error": null,
    "result": [
        {
            "name": "BTC_USDT",
            "stock": "BTC",
            "money": "USDT",
            "fee_prec": 4,
            "stock_prec": 8,
            "money_prec": 8,
            "min_amount": "1e-8"
        }
    ],
    "id": 1
}

Method: market.list

Parameters

None

Example Request with `curl` , `python`:

Response Type:

json

Market Summary

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "market.summary", "params": [], "id": 1}'

import requests

url = "http://example.com/"
payload = {
    "method": "market.summary",
    "params": [],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

{
    "error": null,
    "result": [
        {
            "name": "BTC_USDT",
            "ask_count": 0,
            "ask_amount": "0",
            "bid_count": 1,
            "bid_amount": "1e-8"
        }
    ],
    "id": 1
}

Method: market.summary

Parameters

markets: List of market names, returns overall market information if null.

Example Request with `curl` , `python`:

Response Type:

json

Asset API

Add New Asset

Method: `asset.add`

URL:

http://example.com/

Parameters

The asset.add method requires the following parameters:

Parameter	Type	Description
`name`	String	The name of the asset (e.g., “BTC”).
`is_listed`	Integer	Indicates if the asset is listed (0 = no, 1 = yes).
`prec_save`	Integer	The precision for saving the asset (e.g., 20).
`prec_show`	Integer	The precision for displaying the asset (e.g., 8).
`type`	Integer	The type of the asset (e.g., 1 for normal assets).

Example Request with Python:

import requests

url = "http://example.com/"
payload = {
    "method": "asset.add",
    "params": {
        "name": "BTC",
        "is_listed": 1,
        "prec_save": 20,
        "prec_show": 8,
        "type": 1
    },
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

Example Request with `curl`:

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "asset.add", "params":{"name": "BTC", "is_listed": 1, "prec_save": 20, "prec_show": 8,  "type": 1 }, "id": 1}'

Response Type:

json

{
    "error": null,
    "result": [
        {
            "id": 5,
            "name": "BTC",
            "prec_save": 20,
            "prec_show": 8,
            "type": 1,
            "is_listed": 1
        }
    ],
    "id": 1
}

Update Asset

Method: `asset.update`

URL:

http://example.com/

Parameters

The asset.update method requires the following parameters:

Parameter	Type	Description
`name`	String	The current name of the asset to be updated (e.g., “TUSD”).
`new_name`	String	The new name for the asset (optional, e.g., “USDT”).
`is_listed`	Integer	Updated listing status of the asset (0 = not listed, 1 = listed).

Example Request with Python:

import requests

url = "http://example.com/"
payload = {
    "method": "asset.update",
    "params": {
        "name": "TUSD",        # Current asset name
        "new_name": "USDT",    # Optional new name for the asset
        "is_listed": 1         # Updated listing status
    },
    "id": 2
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

Example Request with `curl`:

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "asset.update","params": {"name": "TUSD","new_name": "USDT",  "is_listed": 1},"id": 2}'

Response Type:

json

Example Response:

{
    "error": null,
    "result": [
        {
            "id": 5,
            "name": "BTC",
            "prec_save": 20,
            "prec_show": 8,
            "type": 1,
            "is_listed": 1
        }
    ],
    "id": 2
}

Asset Inquiry

import requests

url = "http://example.com/"
payload = {
    "method": "balance.query",
    "params": [1, "BTC"],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "balance.query", "params": [1, "BTC"], "id": 1}'

{
  "error": null,
  "result": {
    "BTC": {
      "available": "1.10000000",
      "freeze": "9.90000000"
    }
  },
  "id": 1
}

Method: balance.query

Parameters

user_id: User ID, Integer
assets: List of asset names (optional), String. If omitted, returns overall assets.

Example Request with `curl`, `python`:

Response Type:

json

Asset Update

import requests

url = "http://example.com/"
payload = {
    "method": "balance.update",
    "params": [1, "BTC", "deposit", 100, "-1.2345", {}],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "balance.update", "params": [1, "BTC", "deposit", 100, "-1.2345", {}], "id": 1}'

{
  "error": null,
  "result": "success",
  "id": 1
}

Method: balance.update

Parameters

user_id: User ID, Integer
asset: Asset name, String
business: Business type, String
business_id: Business ID, Integer (ensures idempotency)
change: Balance change, String (negative for deductions)
detail: Additional details, JSON object

Example Request with `curl`, `python`:

Response Type:

json

Asset List

import requests

url = "http://example.com/"
payload = {
    "method": "asset.list",
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "asset.list", "params": [], "id": 1}'

{
    "error": null,
    "result": [
        {
            "id": 5,
            "name": "BTC",
            "prec": 8,
            "prec_save": 20,
            "is_listed": 1,
            "type": 1
        },
        {
            "id": 3,
            "name": "ETH",
            "prec": 8,
            "prec_save": 20,
            "is_listed": 1,
            "type": 1
        },
        {
            "id": 6,
            "name": "USDT",
            "prec": 8,
            "prec_save": 20,
            "is_listed": 1,
            "type": 1
        }
    ],
    "id": 1
}

Method: asset.list

Parameters

None

Example Request with `curl`, `python`:

Response Type:

json

Asset Summary

import requests

url = "http://example.com/"
payload = {
    "method": "asset.summary",
    "params": [],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "asset.summary", "params": [], "id": 1}'

{
    "error": null,
    "result": [
        {
            "name": "ETH",
            "total_balance": "0",
            "available_count": 0,
            "available_balance": "0",
            "freeze_count": 0,
            "freeze_balance": "0"
        },
        {
            "name": "BTC",
            "total_balance": "0",
            "available_count": 0,
            "available_balance": "0",
            "freeze_count": 0,
            "freeze_balance": "0"
        },
        {
            "name": "USDT",
            "total_balance": "10100",
            "available_count": 1,
            "available_balance": "10099.99991992",
            "freeze_count": 1,
            "freeze_balance": "0.00008008"
        }
    ],
    "id": 1
}

Method: asset.summary

Parameters

assets: List of asset names, returns overall asset information if null.

Example Request with `curl`, `python`:

Response Type:

json

Matching API

Place Limit Order

import requests

url = "http://example.com/"
payload = {
    "method": "order.put_limit",
    "params": [1, "BTC_USDT", 1, "10", "8000", "0.002", "0.001", "web"],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "order.put_limit", "params": [1, "BTC_USDT", 1, "10", "8000", "0.002", "0.001", "web"], "id": 1}'

> The above command returns JSON structured like this:
```json
{
    "error": null,
    "result": {
        "id": 1,
        "market_id": 1,
        "market": "BTC_USDT",
        "source": "web",
        "type": 1,
        "side": 1,
        "user": 1,
        "ctime": 1729162600.930465,
        "mtime": 1729162600.930465,
        "fee_type": 0,
        "price": "8000",
        "amount": "10",
        "taker_fee": "0.002",
        "maker_fee": "0.001",
        "left": "10",
        "deal_stock": "0",
        "deal_money": "0",
        "deal_fee": "0",
        "defi_fee": "0",
        "defi_deal_fee": "0",
        "detail": null
    },
    "id": 1
}

Method: order.put_limit

Parameters

user_id: User ID, Integer
market: Market name, String
side: 1 for sell, 2 for buy, Integer
amount: Order quantity, String
price: Order price, String
taker_fee_rate: Taker fee, String
maker_fee_rate: Maker fee, String
source: Order source, String (up to 30 bytes)

Example Request with `curl`, `python`:

Response Type:

json

Place Market Order

import requests

url = "http://example.com/"
payload = {
    "method": "order.put_market",
    "params": [1, "BTC_USDT", 1, "10", "0.002", "web"],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "order.put_market", "params": [1, "BTC_USDT", 1, "10", "0.002", "web"], "id": 1}'

{
  "result": {
    "order_id": 200,
    "market": "BTC_USDT",
    "side": 1,
    "amount": "10.0000"
  },
  "id": 1
}

Method: order.put_market

Parameters

user_id: User ID, Integer
market: Market name, String
side: 1 for sell, 2 for buy, Integer
amount: Order quantity, String
taker_fee_rate: Taker fee, String
source: Order source, String (up to 30 bytes)

Example Request with `curl`, `python`:

Response Type:

json

Cancel Order

import requests

url = "http://example.com/"
payload = {
    "method": "order.cancel",
    "params": [1, "BTC_USDT", 100],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "order.cancel", "params": [1, "BTC_USDT", 100], "id": 1}'

{
  "result": {
    "order_id": 100,
    "status": "cancelled"
  },
  "id": 1
}

Method: order.cancel

Parameters

user_id: User ID, Integer
market: Market name, String
order_id: Order ID, Integer

Example Request with `curl`, `python`:

Response Type:

json

Order Depth

import requests

url = "http://example.com/"
payload = {
    "method": "order.depth",
    "params": ["BTC_USDT", 10, "1"],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "order.depth", "params": ["BTC_USDT", 10, "1"], "id": 1}'

{
  "error": null,
  "result": {
    "asks": [
      ["8000.00", "9.6250"]
    ],
    "bids": [
      ["7000.00", "0.1000"]
    ]
  },
  "id": 1
}

Method: order.depth

Parameters

market: Market name, String
limit: Number of orders to return, Integer
interval: Price interval, String (e.g., “1” for 1 unit interval, “0” for no interval)

Example Request with `curl`, `python`:

Response Type:

json

Pending Orders

import requests

url = "http://example.com/"
payload = {
    "method": "order.pending",
    "params": [1, "BTC_USDT", 0, 100],
    "id": 1
}
headers = {"Content-Type": "application/json"}
response = requests.post(url, json=payload, headers=headers)
print(response.json())

curl -X POST http://example.com/ \
-H "Content-Type: application/json" \
-d '{"method": "order.pending", "params": [1, "BTC_USDT", 0, 100], "id": 1}'

{
    "error": null,
    "result": {
        "offset": 0,
        "limit": 100,
        "total": 1,
        "records": [
            {
                "id": 1,
                "market": "BTC_USDT",
                "source": "web",
                "type": 1,
                "side": 2,
                "user": 1,
                "ctime": 1729162600.930465,
                "mtime": 1729162600.930465,
                "fee_type": 0,
                "price": "8000",
                "amount": "1e-8",
                "taker_fee": "0.002",
                "maker_fee": "0.001",
                "left": "1e-8",
                "deal_stock": "0e-64",
                "deal_money": "0e-64",
                "deal_fee": "0e-64",
                "defi_fee": "0e-64",
                "defi_deal_fee": "0e-64",
                "detail": null
            }
        ]
    },
    "id": 1}

Method: order.pending

Parameters

user_id: User ID, Integer
market: Market name, String
offset: Offset position, Integer
limit: Number of orders to return, Integer

Example Request with `curl`, `python`:

Response Type:

json

Errors

General Error Codes

Code	Description
1	Invalid argument
2	Internal error
3	Service unavailable
4	Method not found
5	Service timeout

weight: 7 title: “Exchange Server Matching API” language_tabs:

shell: Shell
python: Python
json: JSON toc_footers:
Learn about JSON-RPC
Project Repository search: true

WebSocket Server API Documentation

The API is based on JSON-RPC over WebSocket protocol. Repeated subscriptions for the same data type will cancel previous subscriptions.

Request and Response Structures

Request:

method: API method name, String
params: Method parameters, Array
id: Unique request ID, Integer

Response:

result: JSON object, null if failed
error: JSON object, null if successful, non-null if failed
- code: Error code
- message: Error message
id: Request ID, Integer

Notification:

method: API method name, String
params: Method parameters, Array
id: null

Error Codes

1: Invalid argument
2: Internal error
3: Service unavailable
4: Method not found
5: Service timeout
6: Authentication required

Authorization API

ID Verification (Web)

Method: server.auth
Params:
1. token: String, the authentication token
2. source: String, source type, e.g., "web"

Example WebSocket Request:

{
    "method": "server.auth",
    "params": ["your_token", "web"],
    "id": 1020
}

Response:

{
    "error": null,
    "result": "authenticated",
    "id": 1020
}

System API

PING

Method: server.ping
Params: None
Result: "pong"

Example WebSocket Request:

{
    "method": "server.ping",
    "params": [],
    "id": 1000
}

Response:

{
    "error": null,
    "result": "pong",
    "id": 1000
}

System Time

Method: server.time
Params: None
Result: Current server timestamp, Integer

Example WebSocket Request:

{
    "method": "server.time",
    "params": [],
    "id": 1001
}

Response:

{
    "error": null,
    "result": 1694000000,
    "id": 1001
}

Market API

Market Inquiry

Method: kline.query
Params:
1. market: Market name
2. start: Start time (Unix timestamp), Integer
3. end: End time (Unix timestamp), Integer
4. interval: Interval, Integer

Example WebSocket Request:

{
    "method": "kline.query",
    "params": ["BTC_USDT", 1492358400, 1492444800, 60],
    "id": 1004
}

Response:

{
    "error": null,
    "result": [
        [1492358400, "7000.00", "8000.0", "8100.00", "6800.00", "1000.00", "123456.00", "BTC_USDT"]
    ],
    "id": 1004
}

Market Subscription

Method: kline.subscribe
Params:
1. market: Market name
2. interval: Interval, Integer

Example WebSocket Request:

{
    "method": "kline.subscribe",
    "params": ["BTC_USDT", 60],
    "id": 1005
}

Response:

{
    "error": null,
    "result": "subscribed",
    "id": 1005
}

Cancel Subscription

Method: kline.unsubscribe
Params: None

Example WebSocket Request:

{
    "method": "kline.unsubscribe",
    "params": [],
    "id": 1006
}

Response:

{
    "error": null,
    "result": "unsubscribed",
    "id": 1006
}

Price API

Acquire Latest Price

Method: price.query
Params:
1. market: String, market name

Example WebSocket Request:

{
    "method": "price.query",
    "params": ["BTC_USDT"],
    "id": 1007
}

Response:

{
    "error": null,
    "result": "7000.00",
    "id": 1007
}

Latest Price Subscription

Method: price.subscribe
Params: List of market names

Example WebSocket Request:

{
    "method": "price.subscribe",
    "params": ["BTC_USDT", "ETH_USDT"],
    "id": 1008
}

Response:

{
    "error": null,
    "result": "subscribed",
    "id": 1008
}

Market Status API

Acquire Market Status

Method: state.query
Params:
1. market: Market name
2. period: Cycle period, Integer (e.g., 86400 for last 24 hours)

Example WebSocket Request:

{
    "method": "state.query",
    "params": ["BTC_USDT", 86400],
    "id": 1009
}

Response:

{
  "error": null,
  "result": {
    "period": 86400,
    "last": "65000",
    "open": "0",
    "close": "0",
    "high": "0",
    "low": "0",
    "volume": "0",
    "deal": "0"
  },
  "id": 1009
}

Deal API

Acquire Latest Executed List

Method: deals.query
Params:
1. market: Market name
2. limit: Amount limit, Integer
3. last_id: Largest ID of last returned result

Example WebSocket Request:

{
    "method": "deals.query",
    "params": ["BTC_USDT", 50, 0],
    "id": 1010
}

Response:

{
    "error": null,
    "result": [
        {
            "id": 1,
            "time": 1622540000,
            "price": "7000.00",
            "amount": "0.5",
            "type": "buy"
        },
        ...
    ],
    "id": 1010
}

Latest Order List Subscription

Method: deals.subscribe
Params: List of market names

Example WebSocket Request:

{
    "method": "deals.subscribe",
    "params": ["BTC_USDT"],
    "id": 1011
}

Response:

{
    "error": null,
    "result": "subscribed",
    "id": 1011
}

Cancel Subscription

Method: deals.unsubscribe
Params: None

Example WebSocket Request:

{
    "method": "deals.unsubscribe",
    "params": [],
    "id": 1012
}

Response:

{
    "error": null,
    "result": "unsubscribed",
    "id": 1012
}

Depth API

Acquire Depth

Method: depth.query
Params:
1. market: Market name, String
2. limit: Amount limit, Integer
3. interval: Interval, String (e.g., “1” for 1 unit interval, “0” for no interval)

Example WebSocket Request:

{
    "method": "depth.query",
    "params": ["BTC_USDT", 10, "1"],
    "id": 1013
}

Response:

{
    "error": null,
    "result": {
        "asks": [["8000.00", "9.6250"]],
        "bids": [["7000.00", "0.1000"]]
    },
    "id": 1013
}

Depth Subscription

Method: depth.subscribe
Params:
1. market: Market name, String
2. limit: Amount limit, Integer
3. interval: Interval, String

Example WebSocket Request:

{
    "method": "depth.subscribe",
    "params": ["BTC_USDT", 10, "1"],
    "id": 1014
}

Response:

{
    "error": null,
    "result":

 "subscribed",
    "id": 1014
}

Order API (Authentication Required)

Unexecuted Order Inquiry

Method: order.query
Params:
1. market: Market name, String
2. offset: Offset, Integer
3. limit: Limit, Integer

Example WebSocket Request:

{
    "method": "order.query",
    "params": ["BTC_USDT", 0, 10],
    "id": 1015
}

Response:

{
    "error": null,
    "result": [
        {"id": 1, "market": "BTC_USDT", "amount": "1.5", "price": "7000.00", "status": "open"},
        ...
    ],
    "id": 1015
}

Executed Order Inquiry

Method: order.history
Params:
1. market: Market name, String
2. start_time: Start time, Integer
3. end_time: End time, Integer
4. offset: Offset, Integer
5. limit: Limit, Integer
6. side: Side, Integer (1 for sell, 2 for buy)

Example WebSocket Request:

{
    "method": "order.history",
    "params": ["BTC_USDT", 1620000000, 1625000000, 0, 10, 1],
    "id": 1016
}

Response:

{
    "error": null,
    "result": [
        {"id": 2, "market": "BTC_USDT", "amount": "2.0", "price": "7100.00", "status": "filled"},
        ...
    ],
    "id": 1016
}

Asset API (Authentication Required)

Asset Inquiry

Method: asset.query
Params: List of asset names or null to query all

Example WebSocket Request:

{
    "method": "asset.query",
    "params": ["BTC", "ETH"],
    "id": 1017
}

Response:

{
    "error": null,
    "result": {
        "BTC": {"available": "1.5", "freeze": "0.5"},
        "ETH": {"available": "10.0", "freeze": "2.0"}
    },
    "id": 1017
}

Asset History

Method: asset.history
Params:
1. asset: Asset name, can be null
2. business: Business type, can be null
3. start_time: Start time, Integer
4. end_time: End time, Integer
5. offset: Offset, Integer
6. limit: Amount limit, Integer

Example WebSocket Request:

{
    "method": "asset.history",
    "params": ["BTC", null, 1620000000, 1625000000, 0, 10],
    "id": 1018
}

Response:

{
    "error": null,
    "result": [
        {"asset": "BTC", "available": "1.5", "freeze": "0.5", "timestamp": 1622540000},
        ...
    ],
    "id": 1018
}

Exchange Server

The Exchange Server is a high-performance backend system optimized for cryptocurrency trading. It supports up to 10,000 trades per second and provides real-time data notifications through WebSocket.

Architecture

Code Structure

Required Components

Core Libraries

Modules

Deployment and Installation

Compilation

Exchange Server API

Request Format

General Error Codes

Market API

Add New Market

Method: market.add

URL:

Parameters

Example Request with Python:

Example Request with curl:

Response Type:

Example Response:

Response Fields:

Update Market

Method: market.update

URL:

Parameters

Example Request with Python:

Example Request with curl:

Response Type:

Example Response:

Response Fields:

Market Data

Parameters

Example Request with curl , python:

Response Type:

Executed History

Parameters

Example Request with curl , python:

Response Type:

User Executed History

Parameters

Example Request with curl , python:

Response Type:

KLine Data

Parameters

Example Request with curl , python:

Response Type:

Market Status

Parameters

Example Request with curl , python:

Response Type:

Market Status Today

Parameters

Example Request with curl , python:

Response Type:

Market List

Parameters

Example Request with curl , python:

Response Type:

Market Summary

Parameters

Example Request with curl , python:

Response Type:

Asset API

Add New Asset

Method: asset.add

URL:

Parameters

Example Request with Python:

Example Request with curl:

Response Type:

Update Asset

Method: asset.update

URL:

Parameters

Example Request with Python:

Example Request with curl:

Response Type:

Example Response:

Asset Inquiry

Method: `market.add`

Example Request with `curl`:

Method: `market.update`

Example Request with `curl`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Example Request with `curl` , `python`:

Method: `asset.add`

Example Request with `curl`:

Method: `asset.update`

Example Request with `curl`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:

Example Request with `curl`, `python`:
